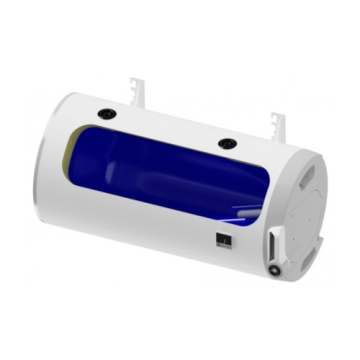

The Dražice OKCV combination water heater is designed for rooms where for some reason it is not possible to install a vertical water heating tank - in the horizontal version it can be mounted on the wall using the supplied wall brackets or on a specially made structure (with space for connecting the return and return pipes).

Water can be treated in two ways: using a built-in heat exchanger of 0.7m2 to which your heating system is connected, or using a single-phase electric heating element with a capacity of 2.2 kW. OKCV 200 and OKCEV 200 tanks are also available with a 4 kW three-phase heating element.

The unit is available in two versions, depending on the version: right-handed or left-handed. The water heating tanks are available in three capacities, 125L, 160L and 200L, irrespective of the version.

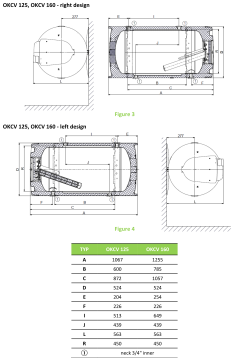

Technical info can be seen below.
