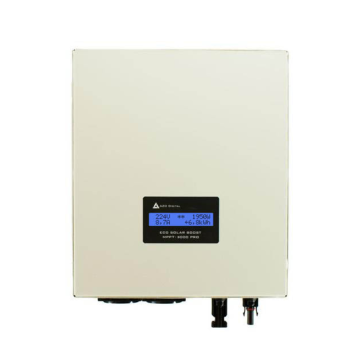

ECO Solar off-grid inverter, 1F, up to 3,5 kW
The ECO Solar Boost MPPT-3000 PRO inverter allows the use of solar panel systems to directly power resistive heating devices such as electric hot water boilers, radiators, electric warm floors, etc.
The system is simple, it only needs to connect the appropriate number (4 - 9 pcs.) of standard solar panels and an energy consumer such as an electric hot water boiler, electric warm floor system, etc.
The ECO Solar power inverter is equipped with an LCD display that allows you to read the current data and parameters of the device, such as:
- Voltage level of solar panel systems;
- The amount of electricity produced;
- The amount of power transferred to the energy consumer;
- Total amount of energy produced today, yesterday or since connection.
The picture below shows a simplified connection of the system with two boilers. The first (1) connection between them is the main connection, the second (2) will only connect when the thermostat of the first appliance reaches the set operating temperature. Appliances with electronic control may only be operated from the first connection.
See below for technical data of the inverter:
| Parameters / Product name: | SOLAR VOLTAGE CONVERTER ECO Solar Boost MPPT-3000 3.5 kW PRO | |
| Input voltage [VDC]: | 120 to 350 (VDC) | |
| Output voltage [VAC]: | 120 to 350 (VAC) | |
| Maximum power: | 3.5 kW | |
| MPPT function: | YES | |
| Connection of PV panels: | Serial or series parallel | |
| Voltage waveform at the output: | Modified sine | |
| VAC Output No. 1: | Priority | |
| VAC Output No. 2: | Dependent * | |
| Under/over voltage protection: | YES | |
| Thermal protection: | YES | |
| Overload protection: | YES | |
| Working temperature: | -25°C ~ +55°C | |
| Efficiency: | >96% | |
| Cooling: | Active | |
| Power Connector: | MC4 connector | |
| 230V output socket: | 2 x E (with pin) | |
| Case: | Aluminum | |
| Degree of protection (IP): | IP21 | |
| Dimensions LxWxH [mm]: | 320x272x96 | |
| Weight [kg]: | 3.25kg | |
