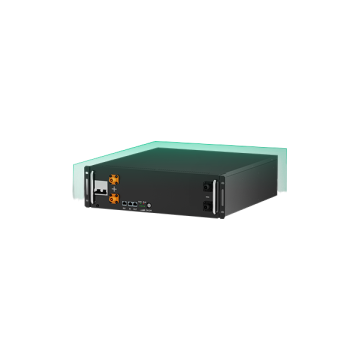

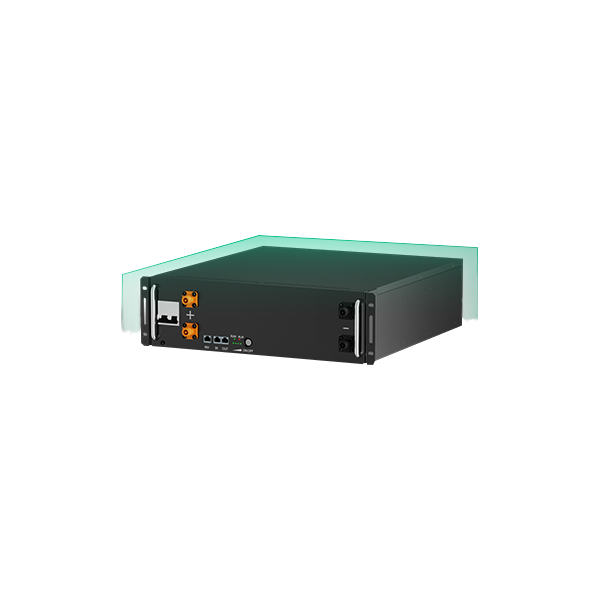

LiFePO4 battery module ZYC SIMPO5000, 5.12 kWh
ZYC SIMPO 5000 is a 5.12 kWh battery system that is suitable for energy storage needs in residential and commercial buildings. It is capable of operating effectively even at lower temperatures (down to -10°C), which allows it to be installed in rooms that are not always heated to room temperature, such as basements or warehouses. The battery can be connected in parallel in a single system with up to 80 other such batteries without additional communication control elements, which allows for flexible and simple system expansion, which becomes even simpler when combined with a ZYC battery storage cabinet, which already has all the necessary connection cables.
Key product features:
- Compatible with inverters from widely used, high-quality manufacturers such as SMA, Victron Energy, Deye, Goodwe, and others;
- Can operate without additional communication connections or with a CAN connection;
- High degree of expandability - up to 80 battery complexes can be connected in parallel without additional communication tools;
- Low-temperature-friendly battery technology helps maintain optimal charge/discharge cycles even at temperatures as low as -10°C;
- Automated product setup without a separate application – the system is ready for use after a short installation process lasting just a few minutes;
- Integrated circuit breaker for added safety;
- Easy to maintain and replace blocks, no need to interrupt system operation;
- Optional: battery cabinets equipped with the necessary cables and connections, designed for six or ten batteries.
- Battery capacity: 5.12 kWh;
- Warranty: 10 years;
- Manufacturer: China (PRC).
The price of the product includes the accessories necessary for its operation - a connection kit for connecting the battery to the inverter (simple connection to your power cable) and a metal frame for placing the module or placing several modules on top of each other.
See below for product specifications:
Battery Type | LiFePO4 (Lithium lron Phosphate) |
Capacity (Ah) | 100Ah |
Energy (Usable) | 5.12kWh |
Nominal Voltage | 51.2V |
Voltage Range | 40.8V ~58.08V |
Weight | 44kg |
Dimension (WxHxD) | 440x134x480 mm |
Maximum Continuous Current | 100A |
Peak Current | 200A (5S) |
Efficiency (@0.5C) | 95.00% |
Cycle Life | >6,000(@25°C) |
Certificates | UN38.3, CE, IEC62619 |
Charging Temperature | -10°C ~ +55°C |
Discharging Temperature | -20°C ~ +55°C |
