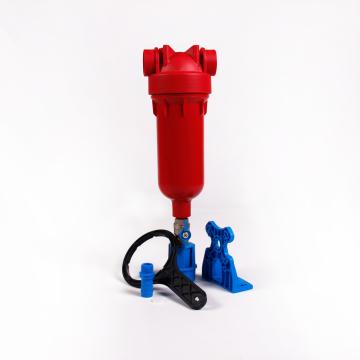

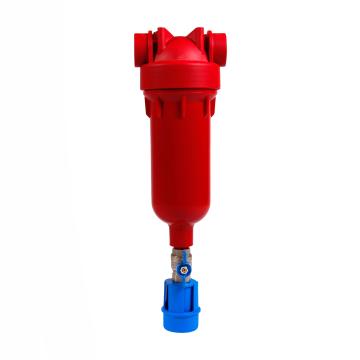

Manually flushable hot water filter ATLAS Hydra HOT (1'')
ATLAS Hydra RAH HOT - version of the ATLAS Hydra RAH particulate and turbidity filter, suitable for hot water treatment.
In case of clogging, open the bottom valve and flush out the accumulated sand, silt and other sediments, discharging the dirty water into the drain or into a separate container. Unlike the standard cold water filter, the RAH HOT filter housing is not transparent.
Flushing is carried out when pressure losses are observed, which can be monitored by pressure gauges installed before and after the filter.
Main product features:
- Easy to flush, easy to clean;
- Purification degree - 90 microns:
- Stainless steel mesh (AISI 316);
- Suitable for hot water up to 80°C;
- No filter element change required;
- High flow rate with low pressure losses;
- Manufacturer: Italy.
See below for technical data:
Equipment technical specifications |
Units |
Model |
HYDRA 1 RAH HOT |
||
Internal/external connection |
inches |
1’’ |
Cartridge type |
|
stainless steel mesh |
Degree of purification |
microns |
90 |
Max. flow rate |
l/h |
6000 |

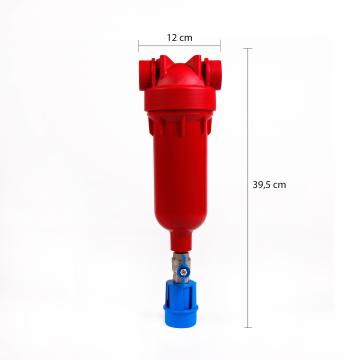

Width |
mm |
120 |
Height |
mm |
390 |
