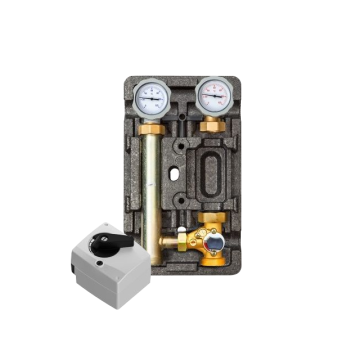

The MC pump group is designed for the heating system as well as the underfloor heating circuit. It is equipped with two ball valves (one of which has a built-in check valve), two thermometers, a three-way valve, a set of mounting elements and EPP insulation.

It is controlled by a special actuator included in this package, which is mounted on the three-way mixing valve and connected to the boiler automation.

A circulation pump is not included.

Technical characteristics:

• Axial distance 125mm;
• Upper connection - 1 1/4", female thread;
• Bottom connection - 1 1/2", male thread (flat sealing);
• Operating temperature - <110°C;
• Working pressure - 6 bar;
• Group hydraulic resistance - Kvs 5.8.
