Pump group SMTC 125 - DN 25 (1'')
Categories:
(SMTC) Pump group with a thermostatic mixing valve
Maximum working pressure: 8 bar
Maximum operating temperature: 110 °C
Insulation: EPP black 60 g/l
Distance between pipelines: 125mm
Mixing valve Kvs: 3.4
Mixer control range: 20 - 45 C or 35 - 60
Seals: Viton or EPDM
Installation side: GW 1"
Boiler side: GZ 1 1/2 "
Pump installation length: 180mm
Available in stock
520.00 €
Price with VAT

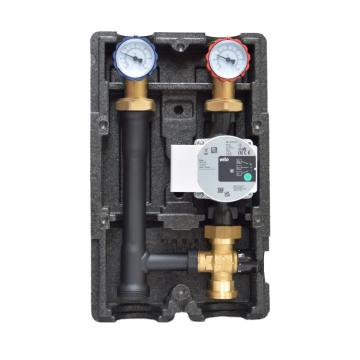

Compact mixing pump group SMTC 125 - DN 25 in two versions: SMTC1 with three-way brass thermostatic mixing valve MIX THERM (kv 3.4) with temperature control range 20 - 45 C or SMTC2 with valve with temperature control range 35-60. Two brass ball valves with water thermometers (with built-in check valve), steel connector and insulation. The group can be equipped with a Wilo or Grundfos pump.
