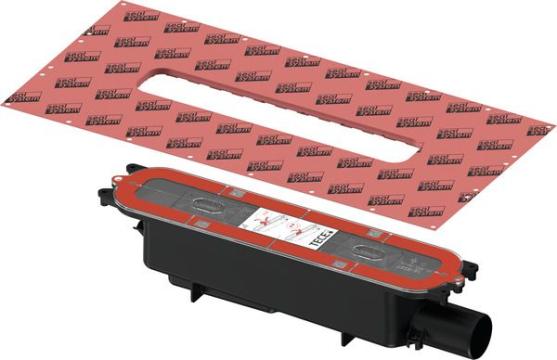

TECEdrainprofile "standard", DN 50, side outlet
TECEdrainprofile shower profile gutter, for installation in the floor, for connection to the side of the DN 50 drain pipe. With factory-fitted and lockable Seal System sealing sleeve for DIN 18534-compliant composite sealing connection.

• Min. installation height 95 mm (from the edge of the base drain to the top of the floor)
• Drainage volume ≥ 0,6/≥ 0,8 l/s (according to DIN EN 1253 with 10/20 mm construction above the profile cover)
• Sealing water height - 50 mm
• Removable anti-suction valve
• Built-in floor anchor
• Factory-fitted and lockable Seal System sealing cuff
• Conforms to pre-formed sound insulation strips
• Protective structural cover
• Sliding/mobile seal for connection to TECEdrainprofile shower profile and for compensation of structural tolerances
