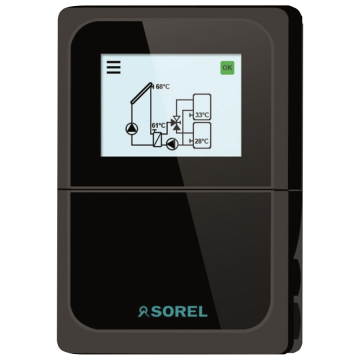

The SOREL TDC SMART Advance takes the capabilities of Sorel's smart controllers even further by incorporating an additional temperature sensor input and PWM output and, most importantly, by enabling the use of a digital flow sensor for more accurate heat measurement.

The SOREL TDC SMART controllers feature a colour touchscreen display and, unlike older SOREL controllers, a WiFi module for remote control is included as standard.

Key product features:

• PT1000 sensor inputs: 4x;
• 230V relay output: 2x;
• 0...10V / PWM signal output: 2x;
• Pre-programmed control applications: 35;
• Option to add additional functions to pre-programmed control applications;
• Temperature control with Digi VFS digital flow sensor;
• Control: 2. 4" touch display or remote control with SOREL Connect app;
• Supplied: fixings, manual, spare fuse;
• Dimensions: 1610 x 110 x 41mm;
• Product rating: IP40;
• Manufacturer: Germany;
• Warranty: 2 years.

SOREL TDC Smart Advance is capable of connecting any Smart Basic or Smart Compact control circuit as well as the circuit diagrams shown below:
