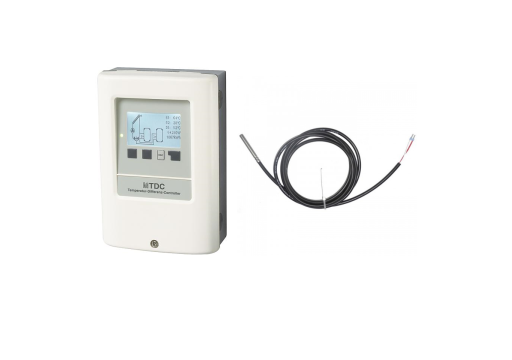

Compact universal controller Sorel MTDC + two temp. sensors
Categories:
Solar controllers
- Solar systems and solid fuel boilers.
- For standard and high efficiency recirculation pumps with PWM signal.
- With 3 inputs and 2 outputs.
- Sensor inputs Pt1000: 3
- Relay outputs 230V: 2
- Including for rotational speed control of standard pumps: 1
- Outputs 0 to 10 V or PWM signal: 1
- Red/green LEDs to show operating states: 1
- Simple heat measurement
- Pressure monitoring via Grundfos direct sensor
SET INCLUDES: PT1000 SENSOR -40 / +200 °C (2pcs)
Available in stock
Versatile, networked, simple and convenient. Thanks to the clear user manual, all types of solar systems, from small to complex, can be intuitively operated.
Simple operation.
