The TOSHIBA Haori Nordic Design air-to-air heat pump is one of the first heat pumps to have a reversible fabric surface. This enables you to create your own unique design using the instructions and plans provided by TOSHIBA (they come with a choice of dark grey or black cover as standard).

As the heat pump is designed for the Scandinavian climate, it can provide guaranteed heating down to -25°C (the manufacturer's power rating at -25°C is 2.6 kW to 2.7 kW for the 25 and 35 models respectively). The 'fireplace' function allows it to distribute the heat generated by the stove or fireplace via the indoor unit - the outdoor unit does not even need to be operated in this mode.

The heat pump uses environmentally friendly R32 air conditioning gas, WiFi control is included.

HEAT PUMP PIPES CAN ONLY BE CONNECTED VIA A REAR CONNECTION.

Basic information about the unit:

• Rated heat output - 3.2 kW (Haori 25) to 4.2 kW (Haori 35);
• Rated cooling capacity - 2.5 kW (Haori 25) to 3.5 kW (Haori 35);
• SCOP - 5.1 (Haori 25 and 35);
• SEER - 7.7 (Haori 25), 7.3 (Haori 35);
• Reagent - R32.

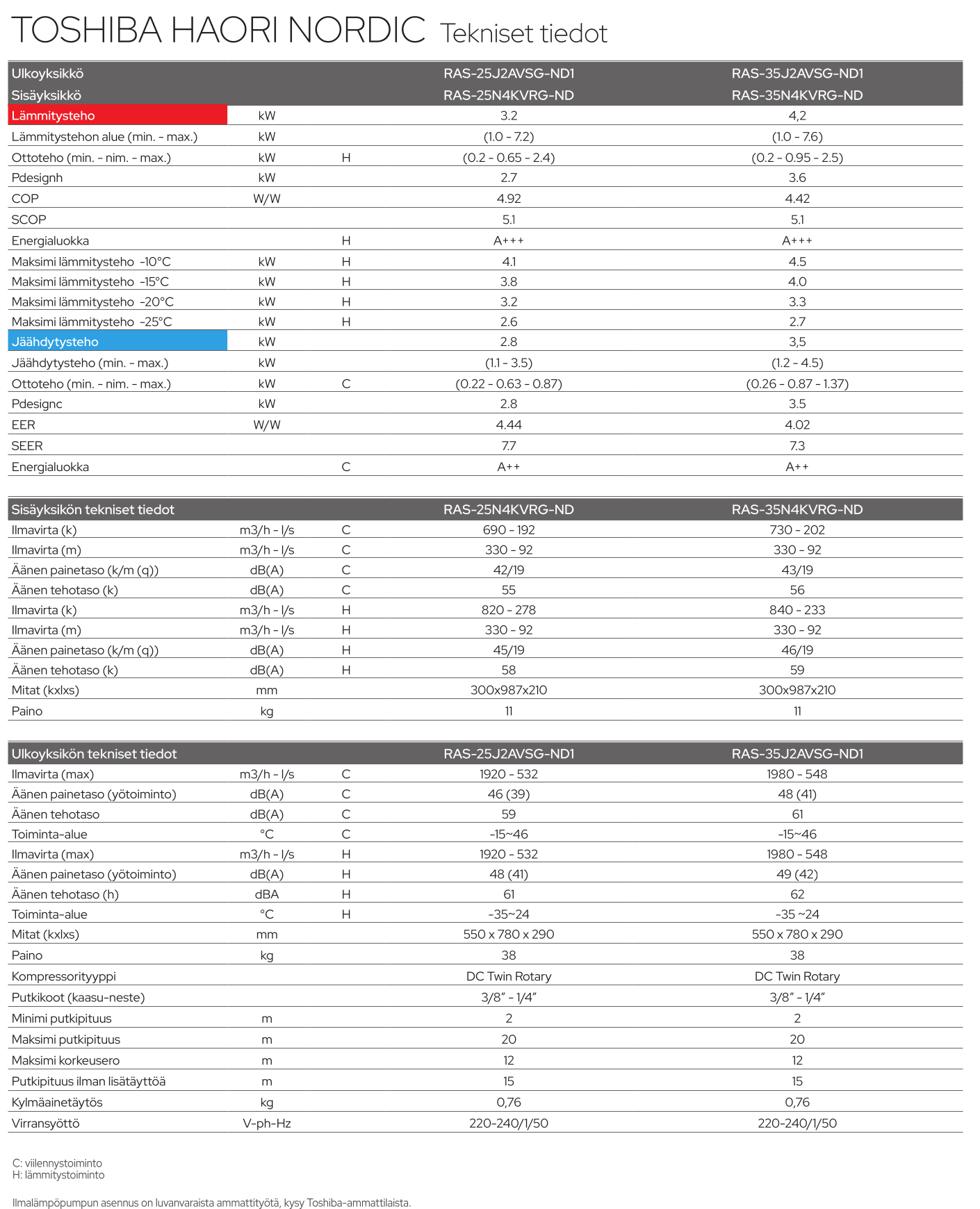

Toshiba HAORI Nordic brochure with technical info (FI, PDF)

Toshiba HAORI cover sewing manual (FI, WEB)

Toshiba HAORI cover schematic (PDF)

Warranty – 2 years.

Manufacturer: Japan

Energy efficiency class: A+++
