High-temperature ATW heat pump Daikin ELBX, with an seperated internal unit, 8-10 kW

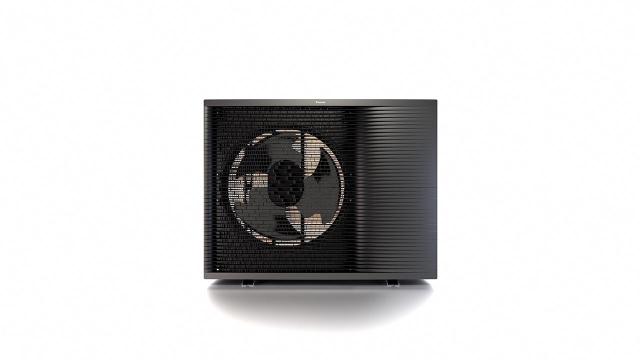

The Daikin Altherma 3 R MT high-temperature air-to-water heat pump is new to the Daikin product family and, like other Daikin products, stands out for its quality and modern design.
The Daikin Altherma 3 R MT stands out from other heat pumps thanks to its low operating temperature, guaranteeing heating even at -25°C, as well as high return water temperature (up to +65°C) and nominal heating capacity down to -15°C. These features also make it suitable for heating system upgrades, such as replacing an existing gas or wood boiler.
The use of R32 reagent helps to reduce the environmental impact by up to 68% compared to older generation models using R410a reagent. It also has a positive impact on the environment in terms of sound, with a sound level of just 38 dB in standard operation and 35 dB in quiet operation.
This version of the heat pump - ELBX - comes complete with a hydraulic module that incorporates the hydraulic units of the heating system. It can be used for heating as well as for hot water (by adding a separate boiler for heat pumps with temperature sensor (+45€) and three-way valve).
WiFi adapter included, Madoka wall-mounted remote control available as an option (+185€).
Energy efficiency class: A+++
Manufacturer: DAIKIN (Japan, assembly of some units in the EU)
Warranty: 2 years
MONTĀŽAS PIEDERUMI UN AKSESUĀRI
Tehnical info can be seen below.
Internal unit | ELBX | 12E9W | 12E9W | 12E9W | |
Dimensions | HxWxD | mm | 840x440x390 | ||
Weight | kg | 48.5 | |||
Additional electric heater | kW | 9 | |||
Sound level, 1m from unit | Nom. | dB(A) | 30 | ||
External unit | ERRA | 08EW1 | 10EW1 | 12EW1 | |
Heating, -7°C | kW | 7.95 | 9.25 | 9.97 | |
Used energy (heating | kW | 1.63 | 1.98 | 2.21 | |
COP | 4.95 | 4.98 | 4.98 | ||
EER | 5.75 | ||||
Energy efficiency class | A+++ | ||||
Dimensions | HxWxD | mm | 1003x1270x533 | ||
Weight | kg | 107 | |||
Work temperature range (min. - max.) | Heating | °C(DB) | - 25~25 | ||
Hot water | °C(DB) | - 25~25 | |||
Refrigerant | Type | R32 | |||
Amount | kg | 3.25 | |||
H2O connection | Piping | Inches | 1/4 - 5/8 | ||
Sound level, 1m from unit | Heating (nom.) | dB(A) | 41.1 | ||
Electric connection | V/F/Hz | 400/3/50 | |||
Fuse | Automatic switch | A | 16 |
