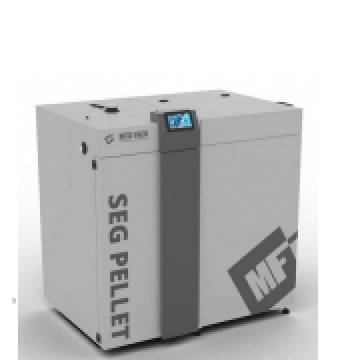

SOKOL pellet boilers SEG PELLET Plum Platinum (15-30 kW)
Categories:
Pellet boilers SOKOL
The SEG PELLET boiler uses reliable technology and design solutions that make it an extremely efficient and proven heat source.

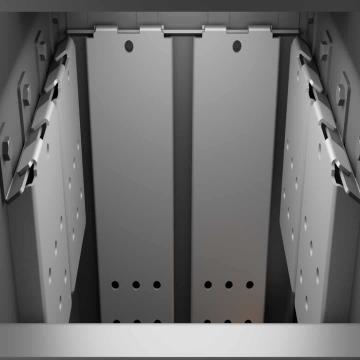

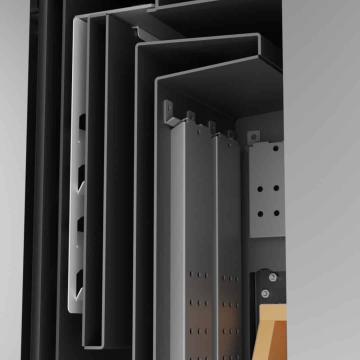

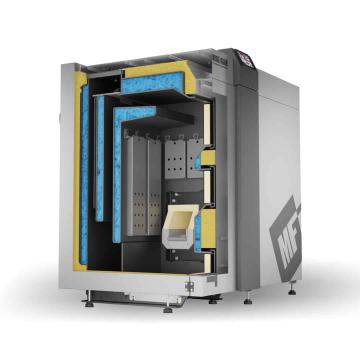

- The shape of the heat exchanger is designed with high energy efficiency in mind.
- The boiler is equipped with a self-cleaning burner that efficiently burns Class C wood pallets according to PN EN 303-5: 2012.
- An automatic igniter in combination with an RTC clock ignites and extinguishes the boiler, reducing the number of operations on the boiler to almost zero.
- After installing the ecoNET internet module, you can control the boiler functions from your phone or PC.
- Warranty: 2 years
- Manufacturer: Poland
Available in stock
Models
30 kW (L), with automated burner cleaning
30 kW (R), with automated burner cleaning
25 kW (L), with automated burner cleaning
25 kW (R), with automated burner cleaning
20 kW (L), with automated burner cleaning
20 kW (R), with automated burner cleaning
15 kW (L), with automated burner cleaning
15 kW (R), with automated burner cleaning
4,575.00 - 5,269.00 €
Price with VAT
max) ? (count = max) : null)">
Technical data
15 kW
Parameter | Value | SEG PELLET |
Nominal heat output | [kw] | 15 |
Heat output range | [kw] | 4,5-15 |
Maximum heatable space | [м2] | 67,5-225 |
Self-heating space | [м2] | 2,1 |
Water volume | [L] | 64 |
Maximum work pressure | [bar] | 3 |
Maximum work temperature | [°C] | 80 |
Testing pressure | [bar] | 4,5 |
Fuel reservoir volume | [L] | 150 |
Fuel reservoir volume | [kg] | 90 |
Fuel | [-] | pellets F6-8мм |
Electrical connection | [-] | 2A; ~230V; 50Hz |
Electric consumption | [w] | 120 |
Temperature range | [°C] | 60-80 (katrs 1 ° C) |
Required chimney draft | [Pa] | 24 |
Weight | [kg] | 448 |
20 kW
Nominal heat output | [kw] | 20 |
Heat output range | [kw] | 6-20 |
Maximum heatable space | [м2] | 90-300 |
Self-heating space | [м2] | 2,54 |
Water volume | [L] | 68 |
Maximum work pressure | [bar] | 3 |
Maximum work temperature | [°C] | 80 |
Testing pressure | [bar] | 4,5 |
Fuel reservoir volume | [L] | 220 |
Fuel reservoir volume | [kg] | 132 |
Fuel | [-] | pellets F6-8мм |
Electrical connection | [-] | 2A; ~230V; 50Hz |
Electric consumption | [w] | 120 |
Temperature range | [°C] | 60-80 (katrs 1 ° C) |
Required chimney draft | [Pa] | 26 |
Weight | [kg] | 510 |
25 kW
Nominal heat output | [kw] | 20 |
Heat output range | [kw] | 7,5-25 |
Maximum heatable space | [м2] | 112,5-375 |
Self-heating space | [м2] | 2,85 |
Water volume | [L] | 83 |
Maximum work pressure | [bar] | 3 |
Maximum work temperature | [°C] | 80 |
Testing pressure | [bar] | 4,5 |
Fuel reservoir volume | [L] | 230 |
Fuel reservoir volume | [kg] | 138 |
Fuel | [-] | pellets F6-8мм |
Electrical connection | [-] | 2A; ~230V; 50Hz |
Electric consumption | [w] | 120 |
Temperature range | [°C] | 60-80 (katrs 1 ° C) |
Required chimney draft | [Pa] | 28 |
Weight | [kg] | 535 |
30 kW
Nominal heat output | [kw] | 30 |
Heat output range | [kw] | 9-30 |
Maximum heatable space | [м2] | 135-450 |
Self-heating space | [м2] | 3,11 |
Water volume | [L] | 88 |
Maximum work pressure | [bar] | 3 |
Maximum work temperature | [°C] | 80 |
Testing pressure | [bar] | 4,5 |
Fuel reservoir volume | [L] | 230 |
Fuel reservoir volume | [kg] | 138 |
Fuel | [-] | pellets F6-8мм |
Electrical connection | [-] | 2A; ~230V; 50Hz |
Electric consumption | [w] | 120 |
Temperature range | [°C] | 60-80 (katrs 1 ° C) |
Required chimney draft | [Pa] | 30 |
Weight | [kg] | 551 |
50 kW
Nominal heat output | [kw] | 50 |
Heat output range | [kw] | 15-50 |
Maximum heatable space | [м2] | 225-750 |
Self-heating space | [м2] | - |
Water volume | [L] | 120 |
Maximum work pressure | [bar] | 3 |
Maximum work temperature | [°C] | 80 |
Testing pressure | [bar] | 4,5 |
Fuel reservoir volume | [L] | 1000 |
Fuel reservoir volume | [kg] | 596 |
Fuel | [-] | pellets F6-8мм |
Electrical connection | [-] | 2A; ~230V; 50Hz |
Electric consumption | [w] | 120 |
Temperature range | [°C] | 60-80 (katrs 1 ° C) |
Required chimney draft | [Pa] | - |
Weight | [kg] | 785 |
75 kW
Nominal heat output | [kw] | 50 |
Heat output range | [kw] | 22,5-75 |
Maximum heatable space | [м2] | 337,5-1125 |
Self-heating space | [м2] | - |
Water volume | [L] | 173 |
Maximum work pressure | [bar] | 3 |
Maximum work temperature | [°C] | 80 |
Testing pressure | [bar] | 4,5 |
Fuel reservoir volume | [L] | 1000 |
Fuel reservoir volume | [kg] | 596 |
Fuel | [-] | pellets F6-8мм |
Electrical connection | [-] | 2A; ~230V; 50Hz |
Electric consumption | [w] | 120 |
Temperature range | [°C] | 60-80 (katrs 1 ° C) |
Required chimney draft | [Pa] | - |
Weight | [kg] | 935 |
100 kW
Nominal heat output | [kw] | 100 |
Heat output range | [kw] | 30-100 |
Maximum heatable space | [м2] | 450-1500 |
Self-heating space | [м2] | - |
Water volume | [L] | 194 |
Maximum work pressure | [bar] | 3 |
Maximum work temperature | [°C] | 80 |
Testing pressure | [bar] | 4,5 |
Fuel reservoir volume | [L] | 1000 |
Fuel reservoir volume | [kg] | 596 |
Fuel | [-] | pellets F6-8мм |
Electrical connection | [-] | 2A; ~230V; 50Hz |
Electric consumption | [w] | 120 |
Temperature range | [°C] | 60-80 (katrs 1 ° C) |
Required chimney draft | [Pa] | - |
Weight | [kg] | 935 |
150 kW
Nominal heat output | [kw] | 150 |
Heat output range | [kw] | 45-150 |
Maximum heatable space | [м2] | 675-2250 |
Self-heating space | [м2] | - |
Water volume | [L] | 339 |
Maximum work pressure | [bar] | 3 |
Maximum work temperature | [°C] | 80 |
Testing pressure | [bar] | 4,5 |
Fuel reservoir volume | [L] | 1000 |
Fuel reservoir volume | [kg] | 596 |
Fuel | [-] | pellets F6-8мм |
Electrical connection | [-] | 2A; ~230V; 50Hz |
Electric consumption | [w] | 120 |
Temperature range | [°C] | 60-80 (katrs 1 ° C) |
Required chimney draft | [Pa] | - |
Weight | [kg] | 1350 |
