Solar collector set for hot water preparation and heating system support SOLARIFY PRO, 800L
SOLARIFY solar collectors are designed to use solar energy for hot water production as well as to support heating. The solar collectors will work efficiently during the summer as well as during the shoulder seasons (depending on the weather conditions, it will be able to work even in winter).
They are able to heat the hot water in the tank to boiling point.
The Solarify Pro solar collector kit includes the necessary items to prepare a solar collector system not only for hot water production, but also for heating support and pool heating.
Please note that this system will only provide effective heating support during the shoulder seasons (autumn, spring months).
This kit consists of a 60-tube vacuum solar collector kit (three 20-tube Solarify collectors), combined with a AE S9 800L multifunction tank and and a smart control unit that can control up to three heating circuits in parallel with the solar collector system.
The piping and pipe connections required for the kits must be purchased separately based on the dimensions you require. Please contact us for costs and availability.
Solar collector set SOLARIFY PRO
60 tube system with a multifunctional tank, for hot water preparation and heating support
Working principle of a vacuum solar collector
Vacuum glass flasks, due to their shape, are able to absorb more energy compared to a flat plate solar collector system (more than 93% of the sun's energy is absorbed, while the efficiency of the solar collector remains at ~83.2%). This energy is further converted into heat and, thanks to the vacuum, the heat is retained inside the glass flask.
This energy is used to concentrate the heat produced in the copper heating tubes, which are located inside the flask. These are heated up to 200°C, heating the liquid in the flask to a vapour state. This heat then travels upwards to a copper heat exchanger in the manifold. There it is transferred to the non-freezing heat exchanger, the liquid in the copper tube is cooled and drained down. The process repeats.
The non-freezing heat transfer fluid is circulated from the solar collector to your boiler or multi-purpose tank via a circulation pump. The operation of the circulation pump depends on a solar control unit to which two temperature sensors are connected, one in the tank and one in the solar collector. As soon as the tank detects a temperature below that which the solar collector can produce, the pump switches on and starts circulating the non-freezing heat transfer medium. The moment the temperature in the tank exceeds the temperature produced, the circulation pump switches off.
Solar collectors can be mounted on the roof, on the ground, or on a flat roof or building facade. The most efficient operation is achieved when mounted facing south, at a 45° angle. But, as already mentioned, thanks to the wide absorption angle compared to flat collectors, they will maintain their operational efficiency even in sub-optimal mounting locations.
Solar collector SR-20 technical data:
Parametre |
Value |
| Efficiency, % | 84.20 |
| Power output, W | 1359 |
| Condenser | φ24 |
| Pipe dimensions, DxL | 58x1800 |
| Collector dimensions, WxHxL | 1980x1564x125 |
| Collector weight (without frame), kg | 60 |

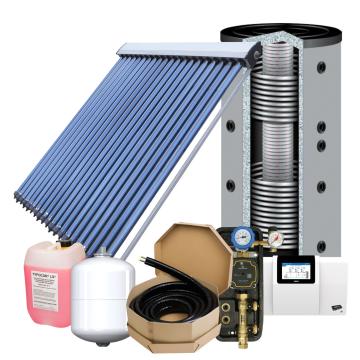

Set includes:
- Multi-purpose tank AE S9 800L,
- Vacuum solar collectors SR20,
- Solar pump station,
- Heat transfer medium for solar collectors TYFOCOR® LS® ROT -28°C,
- Smart control module,
- PT1000 sensor -40 / +180 °C - 2pcs.,
- Expansion vessel for solar collectors.
Additional equipment is selected and supplied separately for each system:
- Stainless steel double insulated piping (10m, 15m, 25m), cable for temperature sensor.
- Roof fasteners (depending on roof covering and angle).
