Solar hot water preparation kit ECO Solar MPPT 3000
A simple hot water station that allows you to combine your existing electric boiler with a solar panel system.

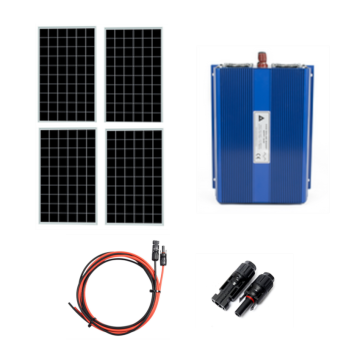

This kit includes from four to seven solar panels, a inverter with an integrated MPPT tracker ECO Solar Boost MPPT-3000 and a 25 metre long solar cable with the necessary connection elements. The result is a kit that will use solar energy to power the connected energy consumer - electric boiler, electric warm floor system, etc.
Unlike the MPPT-3000 PRO inverter, this model is simpler and does not have an integrated LCD display for parametre monitoring.
Although this kit includes solar panels with a total capacity from ~1600W to ~2800W the maximum power that can be connected to the inverter is 3000W.
The picture below shows a simplified connection of the system with two boilers. The first (1) connection between them is the main connection, the second (2) will only connect when the thermostat of the first appliance reaches the set operating temperature. Appliances with electronic control may only be operated from the first connection.
See below for technical data of the inverter:
| Parameters / Product Name: | SOLAR ECO Solar Boost MPPT-3000 VOLTAGE PROCESSER | |
| Input voltage [ VDC ]: | 120 to 350 ( VDC ) | |
| Output voltage [ VAC ]: | 120 to 350 ( VAC ) | |
| Maximum power: | 3 kW | |
| MPPT function: | YES | |
| Connection of PV panels: | serial or serial parallel | |
| Output voltage: | modified sine | |
| VAC output No. 1: | priority | |
| VAC output No. 2: | Dependent * | |
| Sub / overvoltage protection: | YES | |
| Thermal protection: | YES | |
| Overload protection: | YES | |
| Operating temperature: | -25 ° C ~ + 55 ° C | |
| Efficiency: | > 94% | |
| Cooling: | active | |
| Power connector: | MC4 | |
| 230V output socket: | 2 x E (with pin) | |
| Housing: | aluminum | |
| Degree of protection (IP): | IP21 | |
| LxWxH dimensions [mm]: | 290x190x80 | |
| Weight [kg]: | 2.4 kg | |
