TATAREK control unit for heating systems
Categories:
Control units
The TATAREK control module for boiler control has the following advantages:
- Easy to understand and user-friendly interface;
- A display showing current information on sensors, pumps and current temperatures in the heating system;
- Simple installation process;
- It is possible to switch on or off other heating sources (such as an electric boiler or a gas boiler), solar panels can be controlled with this control module;
- Neutral design that will allow it to be integrated into every home interior;
- Possibility to control up to 3 pumps (and 3 temperature sensors);
- Summer/winter mode
Advantages of automatic or intelligent control:
- The combustion process is controlled;
- The entire heating system is controlled;
- Allows to save fuel consumption, to operate the system more efficiently;
- Informs about overheating in the heating system, closes the demister and warns by alarm;
- Extends the life of the heating system;
- No need to install a separate demister (adjustment is included in the connection to the fireplace).

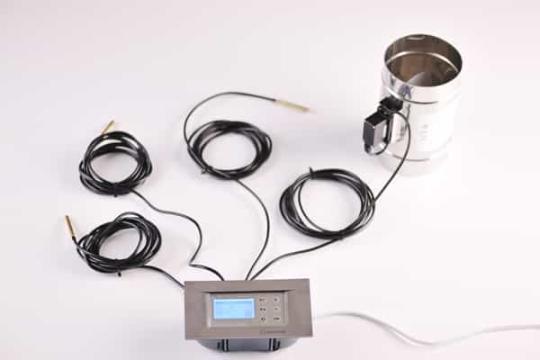

Includes:
- Three water temperature sensors;

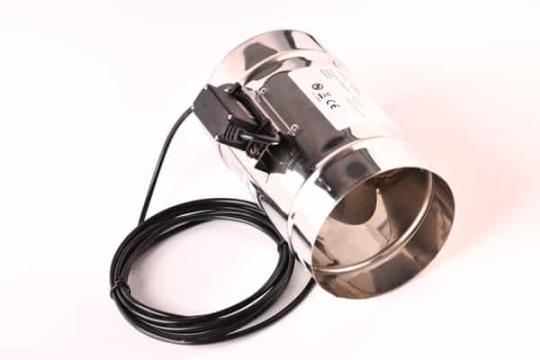

- Electronically adjustable air damper (for fireplace or boiler)
- Control module
Available in stock
300.00 €
Price with VAT

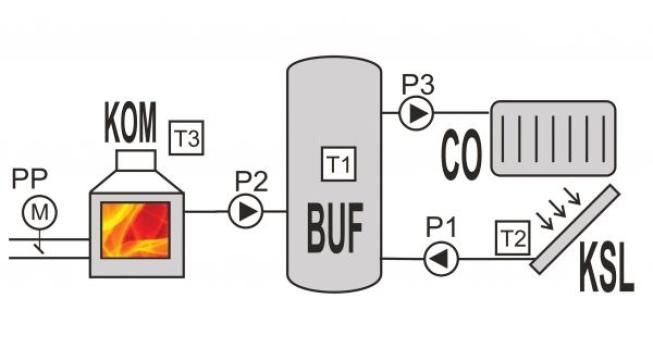

The TATAREK automatic control unit is used to control the heating circuit for central heating fireplaces, as well as other heating system sources (such as an electric or gas boiler). The combustion process is automatically controlled by means of an air inlet damper. The resulting heat is transferred to the hot water tank, the storage tank and the central heating system respectively. Three sensors are used to regulate the operation and up to three pumps can be controlled by the control unit.
No review left
