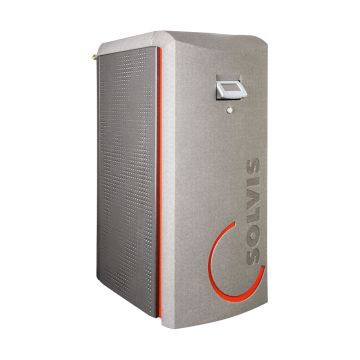

Universal heating system SolvisBen (DEMO)
In connection with the change of the exposition set, we offer you demonstration equipment from the German manufacturer Solvis with a discount of -40%!
The SolvisBen hybrid heating unit incorporates the Solvis heating system principle in a compact housing that will take up little space in your boiler room, but at the same time include everything you need for heating and hot water preparation. The integrated 230L tank will be large enough for a small to medium sized private house, but thanks to the WWS hot water preparation unit integrated in the system, the actual amount of hot water available will exceed what is available in the tank!
If the available space is limited, it is also possible to integrate an HKS heating group into the SolvisBen unit to control one heating circuit. With an integrated gas burner or heat pump connection, the result is a compact but efficient heating system without large external heating circuits. Even in this arrangement, the Solvis heating system retains a high degree of modernisation - it will still be possible to connect, for example, a solar collector system or an additional heating source. To combine them into one system and make them work efficiently, the SolvisControl 3 smart control unit will come in handy.
We would like to remind you that the equipment on offer is demonstration or DEMO equipment - it has been tested and is technically in perfect condition, but as with any presentation equipment, minor visual imperfections (such as scratches) may occur over time, which do not affect the operation of the equipment. This fact is also reflected in the price of the equipment.
Key product characteristics:
- Type of heating: hybrid heating system, with or without built-in gas burner;
- Gas burner capacity: 10, 18, 25, 30 kW;
- Tank capacity: 230L;
- Available hot water through WWS hot water unit: 30l/min;
- Dimensions (W x H x D), mm: 650 x 1400 x 1200;
- Weight, kg: 138.6.
Energy efficiency class: A+++ / A+
SolvisBen/Max system brochure (LV, PDF)
SolvisBen/Max system brochure (RU, PDF)
In total, more than 95 combinations of Solvis systems are possible. If you don't find the one you are looking for here, feel free to contact us and we will help you choose the right hybrid heating system for you.
See below for more information on the models offered.
Models
One system - multiple combinations!
Although there is only one demonstration unit on site, this does not change the fact that it is and remains a Solvis unit - it can be prepared in different combinations to adapt it as much as possible for your needs. Below you can see the breakdowns of the combinations offered on the product page:
- SolvisBen Solo / WWS 30 - SolvisBen unit without built-in gas burner, with instantaneous hot water (30L/min).
- SolvisBen Solo / WWS 30 / HKS - SolvisBen unit without built-in gas burner, with instantaneous hot water preparation unit (30L/min) and integrated heating pump group.
- SolvisBen Gas 10 / WWS 30 - SolvisBen unit with integrated 10 kW gas burner and instantaneous hot water production unit (30L/min).
- SolvisBen Gas 18 / WWS 30 - SolvisBen unit with built-in 18 kW gas burner and instantaneous hot water production unit (30L/min).
- SolvisBen Gas 25 / WWS 30 - SolvisBen unit with integrated 25 kW gas burner and instantaneous hot water production unit (30L/min).
- SolvisBen Gas 30 / WWS 30 - SolvisBen unit with built-in 30 kW gas burner and instantaneous hot water production unit (30L/min).
- SolvisBen Gas 10 / WWS 30 / HKS - SolvisBen unit with built-in 10 kW gas burner, instantaneous hot water preparation unit (30L/min) and integrated heating pump group: a complete heating system!
- SolvisBen Gas 18 / WWS 30 / HKS - SolvisBen unit with built-in 18 kW gas burner, instantaneous hot water preparation unit (30L/min) and integrated heating pump group: a complete heating system!
- SolvisBen Gas 25 / WWS 30 / HKS - SolvisBen unit with built-in 25 kW gas burner, instantaneous hot water preparation unit (30L/min) and integrated heating pump group: a complete heating system!
- SolvisBen Gas 30 / WWS 30 / HKS - SolvisBen unit with built-in 30 kW gas burner, instantaneous hot water preparation unit (30L/min) and integrated heating pump group: a complete heating system!
All these combinations are supplied with a Solvis smart control unit, SolvisControl 3, which allows the heating system to be controlled remotely and to which several heating sources can be connected - if you plan to connect an additional heating system in the future (e.g. a pellet boiler, solar collector system or air-to-water heat pump), you don't need to think about an additional control system for it!

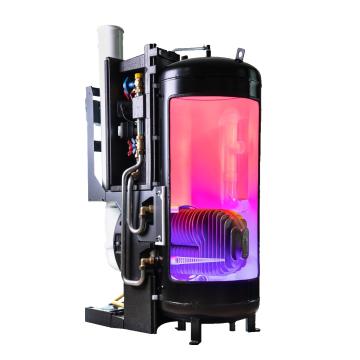

How does a Solvis stratification tank work?
The Solvis heating system is able to operate so efficiently thanks to the Solvis patented stratification tank, which uses the stratification effect to its advantage - instead of heating the entire tank evenly, a process that is both time-consuming, uneconomical in terms of fuel consumed and inefficient in terms of the use of stored heat, the heat that is produced is fed into and extracted from that layer. In this way, heat is extracted more quickly, it is not wasted trying to heat the whole tank (as much heat is produced and consumed as needed), and the working life of the tank is prolonged by not overloading it. In other words, it acts as an "energy manager", separating heat energy into its proper place depending on temperature and putting it to its most efficient use.
Find out more about the SolvisBen unit by clicking on this link!
