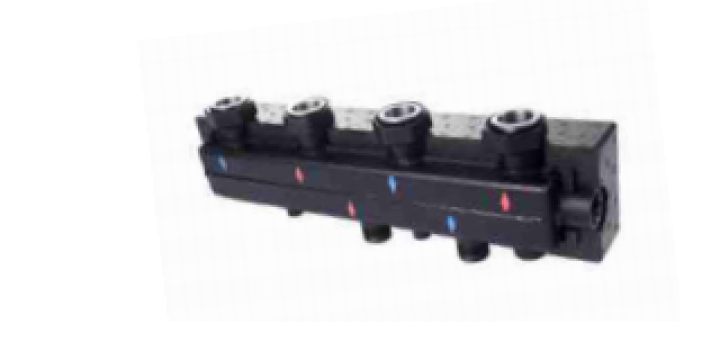

Heating manifold WOMIX C 70 - DN 25 (1”)
Categories:
Heat seperation collectors WOMIX
Material: steel ST 37.1
Pressure: 8 bar
Temperature: 110°C
Heating power: 55 kW at T 20 C
Wheelbase: installation side: 125mm
boiler side: 125 mm
Connection: installation side: internal thread 1 1/2 "
boiler side: GZ 1"
Insulation: EPP black 40 g / l
Available in stock
Two-chamber steel collector C 70 - 2, 3, 4 or 5 circuit DN 25 facilitates the assembly of the pump group. The factory collector is equipped with EPP insulation.
In addition, it has an output for the DN 20 aperture connection on the return side and
output DN 25 on the delivery side to connect the UNI X MINI security group.
The device can be equipped with a mounting bracket DELTA.
