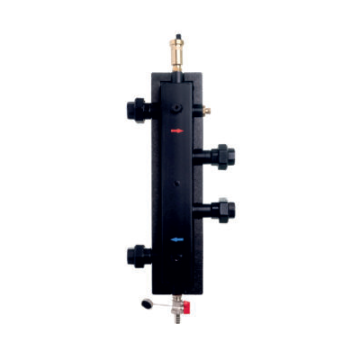

The Womix Hydraulic Separator CPN 70 is made of steel and comes with insulation as standard. It has connection points for a vent valve and temperature sensor, as well as a bleed valve at the bottom.

It comes with a vent valve, a housing for connecting the temperature sensor to the system, a bleed valve, wall fixings and four 1" cast iron fittings.

The CPN 70 hydraulic isolator is designed for use in systems with pump groups only.

Technical details:

• Raw material: Steel
• Insulation material: EPP (black)
• Flow rate: 2,5 m3/h
• Maximum power: 55 kW at ΔT 20 °C
• Max. temp. 110°C
• Maximum pressure: 6 bar
