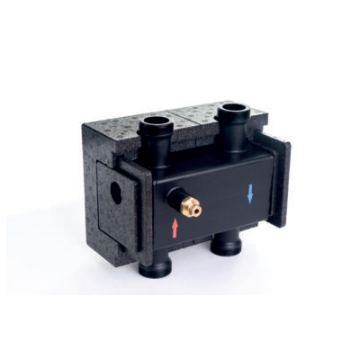

The Womix Hydraulic Separator CPN MINI is made of steel and comes with insulation as standard. It has connection points for a temperature sensor.

It comes with a housing for connecting the temperature sensor to the system.

The CPN MINI hydraulic separator is only designed for use in systems with pump groups.

Technical data:

• Raw material: Steel
• Insulation material: EPP (black)
• Flow rate: 2,5 m³/h
• Maximum power: 40 kW at ΔT 20 °C
• Maximum temperature: 110 °C
• Maximum pressure: 8 bar
• Connections: 1 1/2″
