Saules kolektors Ensol ES2V/2.65S (2.65 kv. m)
Kategorijas:
Plakanie saules kolektori

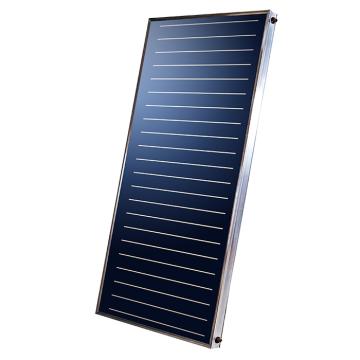

Plakanais saules kolektors Ensol ES2V / 2.65B vertikālai montāžai, laukums 2.65 m2.
Saules kolektora uzstādīšanai papildus ir jāizvēlas hidrauliskie savienojumi un jumta stiprinājumi, atkarībā attiecīgi no kopēja saules kolektoru skaita sistēmā un no jumta īpašībām.
- Ražotājs: ENSOL (Polija)
- Garantija: 10 gadi
Pieejams pēc pasūtījuma
660.00 €
Cena ar PVN
Ensol ES2V / 2.65S saules kolektors
Tehniskie dati
| Flat collector: | Symbol | Unit | Value |
|---|---|---|---|
| Width | A | mm | 1120 |
| Height | B | mm | 2356 |
| Depth | C | mm | 85 |
| Weight | m | kg | 49 |
| Surface | S | m2 | 2,65 |
| Optical efficiency | ηo | % | 82,4 |
| Coefficient | a1 | W/(m2K) | 2,905 |
| Coefficient | a2 | W/(m2K) | 0,030 |
| Connection: Cu pipe | ø | mm | 22 |
| Casing | Aluminium profile | ||
| Cover | Prismatic solar glass, 4 mm in thicknes | ||
| Absorber: | |||
| Absorber's type | Cu sheet with a thickness of 0,2 mm | ||
| Selective layer | BlueTec eta plus | ||
| Production technology | Ultrasonic welding | ||
| Absorption coefficient | α | % | 95 |
| Emission coefficient | ε | % | 5 |
| Width | a | mm | 1060 |
| Height | b | mm | 2299 |
| Surface of absorber | Sb | m2 | 2,44 |
| Active surface | Sn | m2 | 2,44 |
| Liquid content | V | dm3 | 2,2 |
| Temperature balance | Tr | oC | 208 |
| Guaranteed minimal heat output | kWh/m2∙year | ||
| Flow: recommended allowed |
l/h l/h |
appr. 75-105 50-150 |
|
| Insulation | mineral wool | ||
| Conduction coefficient | λ | W/mK | 0,035 |
| Thickness of insulation layer | |||
| Lower | d | mm | 40 |
| Lateral | d1 | mm | 10 |
| Research Report | TÜV Köln 21214977_EN_R/P | ||
| Solar Keymark | 011-71556 F | ||
