ATW heat pump Mitsubishi Eco Inverter, 4 - 6 kW
Categories:
MITSUBISHI
The Mitsubishi Eco inverter (4.3 or 5.7 kW models) air-to-water heat pump is the ideal solution for any new build or smaller renovated home. It is flexible and easy to combine (e.g. with a central heating fireplace for a hybrid heating system). Switching to a heat pump heating system can save up to 75% on heating costs thanks to its high efficiency.

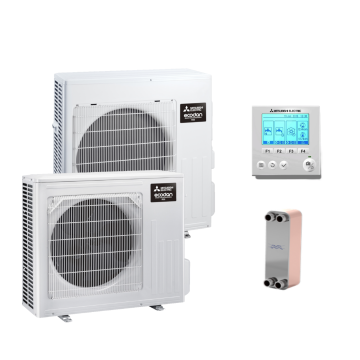

This version of the unit combines a Mitsubishi Eco Inverter outdoor unit with a dedicated heat exchanger, the pressure and flow sensors necessary for its efficient operation, and a Mitsubishi control unit.
- Manufacturer: MITSUBISHI ELECTRIC (Japan)
- Warranty: 5 years
ACCESSORIES AND INSTALLATION MATERIALS
For your information:
- Copper pipes and ground or wall brackets are required when planning the installation, depending on the installation location.
OPTIONAL EXTRAS:
- Pressure sensor for Mitsubishi external unit (included in total price) - 52€
- Flow sensor for Mitsubishi external unit (included in total price) - 155€
- TH1 room temperature sensor - 63€
- THW5 hot water temperature sensor - 37€
- THW6/THW7 heating return/return temperature sensors - 52€
- THW8/THW9 heating return temperature sensors - 52€
- THWB1/THWB2 boiler return and return temperature sensors - 73€
- WiFi adapter - 141€
- Mitsubishi double pump group for control of two heating circuits TWO ZONE KIT - 1190€
- Mounting bracket for Mitsubishi outdoor unit - 208€
- Bath heating cable for external unit - 42€
- Mounting bracket with condensate collection bath and heating cable for outdoor unit - 335€
Energy efficiency class: A++
Available in stock
4,255.00 - 4,940.00 €
Price with VAT
| External unit parametres | SUZ-SHWM40VAH-HC | SUZ-SHWM60VAH-HC | ||
| HEATING | (C) Power / Energy class / SCOP at 35°C / ɳs % | kW / rat. / SCOP / % | 5 / A++ / 3.62 / 145 | 5.5 / A++ / 3.68 / 147 |
| (C) Power / Energy class / SCOP at 55°C / ɳs % | kW / rat. / SCOP / % | 5 / A+ / 2.55 / 102 | 5.5 / A / 2.50 / 100 | |
| A7/W35 / Capacity / el. consumption / COP | kW / kW / COP | 3 / 0.63 / 4.77 | 5 / 1.01 / 4.95 | |
| Capacity at -15°C/+35°C | kW | 4 | 6 | |
| Capacity at -15°C/+45°C | kW | 4.3 | 5.7 | |
| Min-Nom-Max capacity at A7/W35 | kW | 2.6 - 3.0 - 6.9 | 3.4 - 5.0 - 8.3 | |
| COOLING | EER | EER | 3.33 | 3.28 |
| Min-Nom-Max capacity at A7/W35 | kW | 4.5 | 6 | |
| Dimensions (W x H x D) | mm | 714 x 800 x 285 | 880 x 840 x 330 | |
| Weight | kg | 40 | 53.5 | |
| Work temperature (heat / cool) | °C | -25 / +10 | -25 / +10 | |
| Sound level (heating) | A | 57 | 60 | |
| Piping Ø (liquid/gas) | inch | 1/4'' / 1/2'' | 1/4'' / 1/2'' | |
| Min/Max pipe length | m | 2 - 26 | 2 - 46 | |
| Max. Height | m | 26 | 30 | |
| Fuse | A | 16 | 20 | |
| Work current | A | 13.5 | 17.3 | |
| Electrical data | F / V / Hz | 1 / 230 / 50 | 1 / 230 / 50 | |
| Delivered piping length | m | 5 | 7 | |
| Reagent | R32 | R32 | ||
| GWP | 675 | 675 | ||
| Nom. Reagent amount | Weight | kg | 0.8 | 1.1 |
| CO2 ekv. | ton. | 0.54 | 0.74 | |
| Max. Reagent amount | Weight | kg | 1.3 | 1.7 |
| CO2 ekv. | ton. | 0.88 | 1.15 | |
